How to Model Asymmetric Chromatographic Peaks

A chromatographic peak can look acceptably resolved while still producing biased area, retention-time, width, and purity estimates. That risk increases when laboratories model asymmetric chromatographic peaks with a symmetric Gaussian or Lorentzian simply because the curve appears close enough. For quantitative work, visual resemblance is not a sufficient criterion. The selected model must represent the observed signal, separate it from the baseline, and produce parameters that remain defensible when peaks overlap.

Asymmetry is not a cosmetic defect in chromatographic data. It often reflects real transport, adsorption, injection, detector, or column effects. A fitting workflow that treats tailing or fronting as an afterthought can redistribute area between adjacent components, distort integrated response, and conceal a poor separation behind a smooth plotted line.

Why chromatographic peaks become asymmetric

An ideal Gaussian peak assumes a symmetric distribution of solute transit times through the system. Real chromatographic systems rarely meet that assumption perfectly. Secondary interactions with active sites, heterogeneous stationary phases, column overload, extra-column dispersion, slow mass transfer, and detector response can all alter the leading or trailing side of the peak.

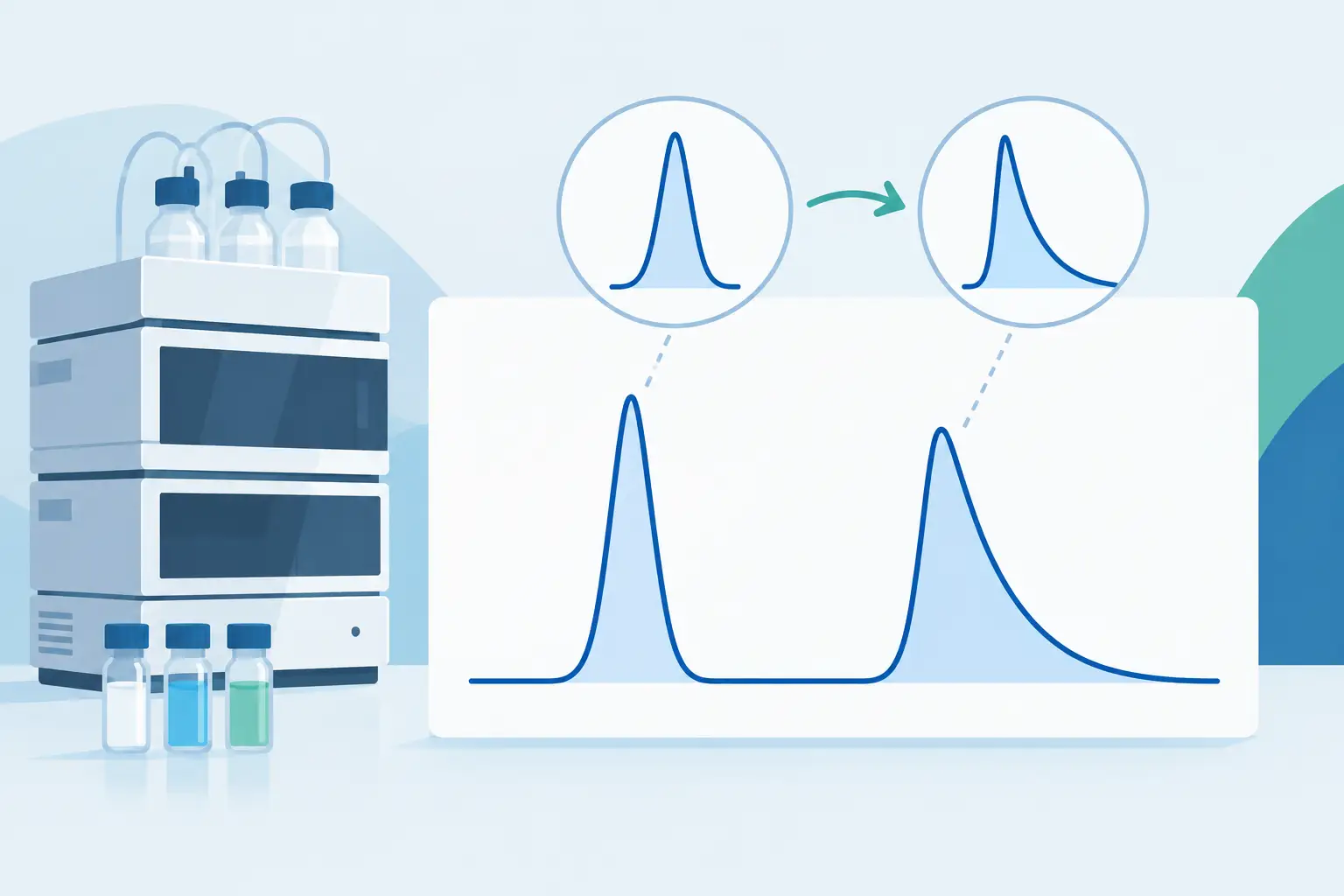

Tailing is particularly common when part of an analyte population experiences delayed interaction with the stationary phase. The result is an extended right-side tail. Fronting may occur with overload or nonlinear adsorption, producing a broadened leading edge and a comparatively sharp trailing boundary. These mechanisms matter because they inform whether asymmetry should be represented by a general empirical shape or by a function with parameters that correspond more closely to a plausible physical process.

The correct choice also depends on the data objective. If the purpose is routine peak-area quantitation for well-separated analytes, a stable empirical asymmetric function may be entirely appropriate. If the task is method development, impurity analysis, coelution investigation, or publication-grade interpretation, the model should be examined more critically against residual behavior, parameter uncertainty, and chemical plausibility.

Choose a peak function that matches the observed shape

No single asymmetric function is best for every chromatogram. The practical objective is not to find the most flexible equation. It is to select the simplest model that accounts for meaningful shape features without adding parameters that the data cannot support.

Exponentially modified Gaussian

The exponentially modified Gaussian, often called EMG, is a useful starting point for many tailing peaks. It represents a Gaussian distribution convolved with an exponential decay. The Gaussian component describes the central dispersion, while the exponential component represents delayed elution that creates the tail.

EMG models are valuable when the chromatographic mechanism plausibly includes a delayed transport or interaction process. Their parameters are also easier to interpret than those of a purely unconstrained flexible function. However, an EMG is directional: it naturally describes right-side tailing. A mirrored implementation may accommodate fronting, but the analyst should not assume that a mathematically mirrored curve explains the same underlying chemistry.

Fraser-Suzuki and related asymmetric peak functions

The Fraser-Suzuki function is widely used when a smooth, adjustable asymmetric profile is needed. It can model both modest and substantial skew while retaining familiar peak descriptors such as location, height, and width. This makes it useful for chromatographic deconvolution, particularly when the immediate requirement is accurate component separation rather than a direct mechanistic interpretation of every shape parameter.

Its flexibility is also its limitation. When several partially resolved components are fit simultaneously, unconstrained asymmetry parameters can compensate for an incorrect number of peaks, baseline error, or noise. The fitted curve may look excellent while its component areas become unstable. Constrain shared shape characteristics where justified by the chemistry and acquisition conditions.

Lognormal, Pearson, and generalized functions

Lognormal and Pearson-family functions can represent skewed peak distributions across a broad range of shapes. Generalized models are useful when standard functions fail systematically in the residuals. They should not be the first response to every difficult signal, however. More freedom in the equation increases the chance of parameter correlation and nonunique solutions.

A useful test is repeatability. Fit replicate injections using the same model form and sensible bounds. If area ratios, locations, or asymmetry parameters move substantially without corresponding changes in the raw data, the model is likely underconstrained or overparameterized.

Model the baseline and asymmetric peaks together

Baseline treatment is often the largest hidden source of error in asymmetric peak fitting. A sloped, curved, drifting, or step-changing baseline can mimic tailing, flatten a shoulder, or absorb genuine low-level components. Subtracting a baseline before fitting can be appropriate for simple signals, but it is less reliable when the baseline itself is uncertain near overlapping peaks.

For difficult chromatograms, fit the baseline and peak components as one composite model. The baseline can be represented by a local constant, linear term, polynomial of restrained order, spline segment, or a specialized baseline procedure selected for the acquisition behavior. The choice should reflect the local data window and known instrumental effects, not convenience.

A high-order polynomial deserves particular caution. It can follow broad tails and weak analyte signals so closely that the apparent residual error decreases while analyte area is removed from the fitted components. A low residual sum of squares is not evidence that the baseline is valid. Inspect whether the baseline shape remains chemically and instrumentally credible in regions adjacent to the peaks.

In PeakLab™, integrated baseline-and-peak modeling is designed for this problem: the baseline is not treated as a separate visual cleanup step, but as part of the analytical model evaluated with the fitted components. That distinction is essential when small impurities, shoulders, or late-eluting tails affect reported quantities.

Use constraints to prevent mathematically good but chemically poor fits

Nonlinear fitting will converge toward a numerical optimum, not necessarily a scientifically meaningful solution. Constraints convert known information into model discipline. They are especially valuable for asymmetric peaks because width, skew, amplitude, and baseline terms can be strongly correlated.

For a homologous series or repeated analyte across injections, retention positions can be bounded within realistic windows. Widths may be linked or limited when column efficiency suggests comparable broadening. Peak amplitudes should normally remain nonnegative, and areas must remain physically meaningful. If an asymmetric function includes a tailing parameter, define practical lower and upper limits based on observed chromatographic behavior rather than leaving the parameter unlimited.

Constraints should not force a preferred answer. An overly narrow retention-time bound can conceal a real shift, while forcing all components to share a single asymmetry value can create structured residuals when analytes interact differently with the column. The aim is to remove implausible solutions while preserving the model’s ability to represent supported differences in the data.

Diagnose the fit beyond the overlay plot

A plot of fitted curve over raw signal is necessary, but it is not enough. Closely inspect residuals, preferably across the complete fitting interval and at a magnified scale. Random residuals centered around zero are generally consistent with an adequate model. Systematic positive and negative regions indicate that a model component is missing, the selected peak shape is inappropriate, or the baseline is misrepresented.

For asymmetric chromatographic peaks, several diagnostic patterns are especially informative. A residual lobe on the trailing side often indicates insufficient tailing in the model. Alternating residual structure around an apparent single peak may indicate unresolved coelution. A broad offset under the entire cluster commonly points to baseline mismatch. If adding a component improves the fit only in isolated noise-scale fluctuations, it may be overfitting rather than identifying a real analyte.

Statistical measures such as residual standard deviation, parameter confidence intervals, covariance, and information criteria provide additional evidence. They should be interpreted together. A lower residual error achieved by adding several weakly identifiable parameters may not improve the reliability of reported area. In regulated, publication, or decision-critical work, retain the model specification, fit settings, parameter bounds, residual plots, and data-processing record so the result can be reproduced and reviewed.

A disciplined workflow for overlapping asymmetric peaks

Begin with the smallest credible model. Establish a fitting interval that includes enough baseline on both sides of the feature. Identify whether the local signal is isolated, shouldered, or clearly composite, then select an asymmetric function based on the direction and severity of the distortion.

Fit a restrained baseline with the initial component set. Evaluate residuals before introducing more complexity. If a shoulder persists in the residual pattern, add a chemically plausible component and refit all peaks simultaneously. Do not fit the dominant peak, subtract it, and then fit the remainder unless the workflow has been validated for that approach. Sequential subtraction propagates early modeling error into every later component.

Finally, test stability. Change starting values within reasonable limits, fit replicate injections, and compare the resulting areas and locations. A defensible model should converge consistently to similar parameter estimates, not depend on a single fortunate set of initial guesses.

The best asymmetric peak model is not the curve that follows every point most closely. It is the one that makes the fewest unsupported assumptions while preserving meaningful area, separation, and uncertainty information. When the next difficult chromatogram arrives, let the residuals and the chemistry determine the model – not the convenience of a symmetric peak template.
